¶ Driver Kit

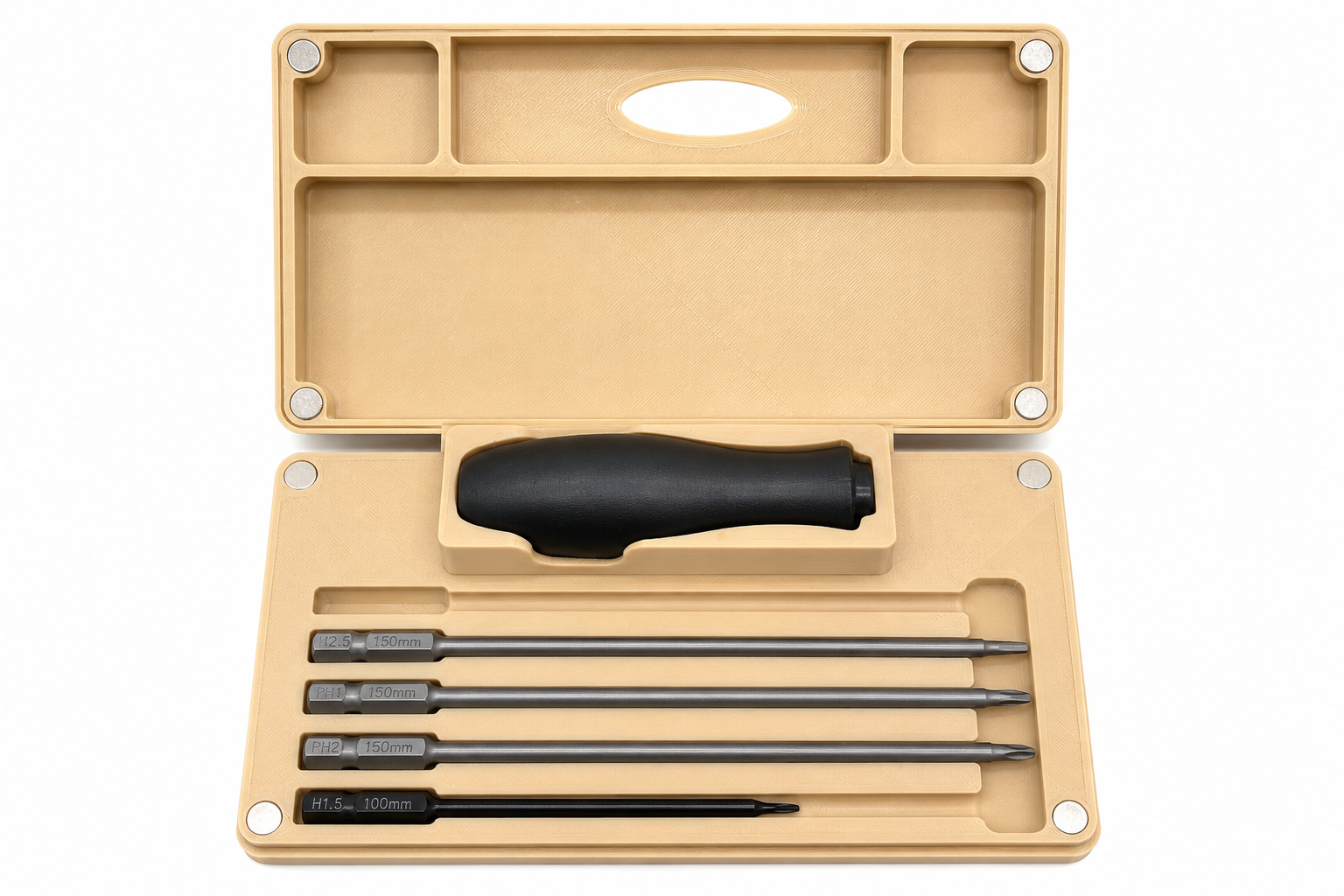

Driver Kit with Printed Parts
¶ Overview
The UnderBaked Driver Kit is an optional accessory for assembling Tall Boy and other UnderBaked projects.
It includes the longer driver bits recommended for reaching recessed screws in printed enclosures, along with magnets and a printed storage case.
¶ Included
- 13 × 8 mm × 3 mm magnets
- 150 mm 2.5 mm hex driver bit
- 150 mm Phillips #1 driver bit
- 150 mm Phillips #2 driver bit
- 100 mm 1.5 mm hex driver bit
** Not Included
- 3D printed storage case and handle
¶ 3D Printing Models
Use the following model files to print the Driver Kit case and handle components.
| Model | File | Print Notes |
|---|---|---|
| Screw Driver | Screw Drive Rev 1 v2.3mf | Print vertically. Add a pause in the print to insert 1 x 8 mm magnet. |
| Bottom | Bottom.3mf | Add a pause in the print to insert 5 x 8 mm magnets. |
| Top | Top.3mf | No print pause required. |
Optional full build plate/project file:
